Tokin Metal-Sealed Actuators

AHB800C302 - High Displacement

Without Flange

510C801WD-A0LF_sm2

AHB800C302WD-A0LF - V-Groove Top

L = 65.0±0.5

1-9 units: Contact us

10-24 units: Contact us

25-50 units: Contact us

>50 units: Contact us

Specifications

Item
Standard Conditions

Operating

temp range

-25 to +85°C
When applied with a DC voltage:
Ambient temp
When driven by an AC voltage:
Ambient temp + Temp rise
due to generated heat

Rec Storage cond

-5 to +40°C
Max driving volt 150V DC
Displacement
80.0 ± 15 um At 150V DC
Blocking force
3000 N
Force required for restricting
the displacement to 0 when the
maximum driving voltage is applied.
Capacitance
37.0 uF ± 20% f = 1kHz; V=1Vrms
Dissipation Factor
5.0% or less f = 1kHz; V=1Vrms
Insul Resist
2 MOhm Value obtained in 1 minute at 150V DC
Resonant Freq 8 kHz
With both ends of the
actuator in free state. Typical value
of the element under test conditions
Airtightness 1x10-8 atm cc/sec or less

Temp

Cycle Test

Displacement: Initial value ± 30%
Capacitance: Initial value ± 30%
Tan Delta: Less than initial rated value
Insulation resistance: 1MOhm or more
Apperance: No noticeable defect
Room temperature (3 min)
-25°C (30 min)
Room temperature (3 min)
+85°C (30 min)
Rep of 10 cycles of the above

High Temp

Shelf Test

Displacement: Initial value ± 30%
Capacitance: Initial value ± 30%
Tan Delta: Less than initial rated value
Insulation resistance: 1MOhm or more
Apperance: No noticeable defect
Temperature 85°C ± 2°C
Time  1,000 ± 48h

Solvent

resist Test

Displacement: Initial value ± 30%
Capacitance: Initial value ± 30%
Tan Delta: Less than initial rated value
Insulation resistance: 1MOhm or more
Apperance: No noticeable defect
Mark: Easily legible
Solvent: Isopropyl alcohol
Temperature:23  ± 5°C
Time: Immersion for 1 min

Heat

resist Test

Displacement: Initial value ± 30%
Capacitance: Initial value ± 30%
Tan Delta: Less than initial rated value
Insulation resistance: 1MOhm or more
Apperance: No noticeable defect
Mark: Easily legible
Temperature: 150 ± 3°C
Time: 96 ± 4h

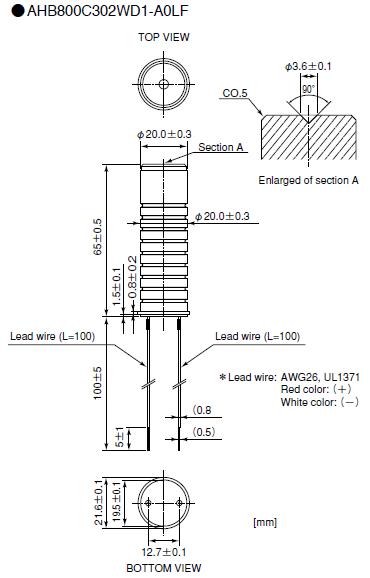

Dimensions for Mounting Options

DWG_800C302
