"10W Series" Step Down PTs
Piezoelectric Transformers
"10W Series" Step Down Piezoelectric Transformers
Specifications
| Items | Specification | Remarks | ||
|---|---|---|---|---|
| Output Power Rating | Pout | 10W | Temperaturerise < 20°C | |
| Operating Temperature | T | -55~125°C | Tested on metal shell | |
| Dielectric Strength (Input to Output) | Vb | > 3700Vdc / 1min | Leakage current < 20uA | |
| Output VoltageRating | Vout | 10V | Part No.: 020010 | |
| 12V | Part No.: 020012 | |||
| 15V | Part No.: 020015 | |||
| 18V | Part No.: 020018 | |||
| 24V | Part No.: 020024 | |||
| Recommended working frequency | Freq | 127~132 kHz | ||
| Input Voltage Window | Vin | 57 ~ 75V | Part No.: 010010 | Measured at Troom |
| 64 ~ 76V | Part No.: 010012 | |||
| 56 ~ 80V | Part No.: 010015 | |||
| 62 ~ 70V | Part No.: 010018 | |||
| 55 ~ 70V | Part No.: 010024 | |||
| Input Static Capacitance | Cin | 3.5 nF ± 10% | Part No.: 010010 | Measured at 1kHz and Troom |
| Part No.: 010012 | ||||
| Part No.: 010015 | ||||
| Part No.: 010018 | ||||
| Part No.: 010024 | ||||
| Output Static Capacitance | Cout | 88 nF ± 10% | Part No.: 010010 | Measured at 1kHz and Troom |
| 56 nF ± 10% | Part No.: 010012 | |||
| 34 nF ± 10% | Part No.: 010015 | |||
| 27 nF ± 10% | Part No.: 010018 | |||
| 16 nF ± 10% | Part No.: 010024 | |||
Features
- Step-down piezoelectric transformer using radial vibration.
Applications
- DC-DC Converters, CFL and Linear Fluorescent lamps ballasts

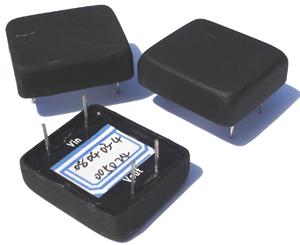

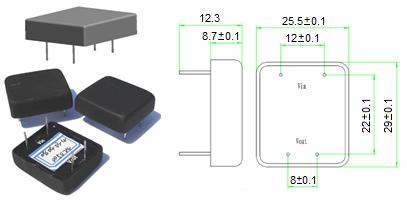

Dimensions

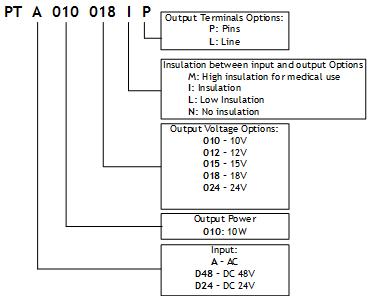

How to order
Request a quote of this product by sending an e-mail through:
by refering to the product part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). In order to place an order with credit card, you can call 814-861-5688.
Purchasing Options
| Part Number | Article | Price |
|---|---|---|
| PT A 010 010 IP | Step-down radial Piezo Transformer Pout = 10 W, Vout = 10 V |
1-9 Units: $200.00
|
| PT A 010 012 IP | Step-down radial Piezo Transformer Pout = 10 W, Vout = 12 V |
|
| PT A 010 015 IP | Step-down radial Piezo Transformer Pout = 10 W, Vout = 15 V |
|
| PT A 010 018 IP | Step-down radial Piezo Transformer Pout = 10 W, Vout = 18 V |
|
| PT A 010 024 IP | Step-down radial Piezo Transformer Pout = 10 W, Vout = 24 V |
