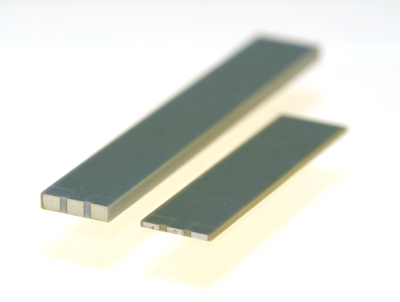

Ceramic Multilayer Piezo Bender NAC222X (Replaces CMBP)
Noliac/CTS Piezo Actuators
Specifications on Multilayer Plate Benders NAC222X:
| Product Name | Length | Width | Height | Max. Voltage (*) | Free Stroke | Blocking Force |
|---|---|---|---|---|---|---|
[mm] |
[mm] |
[mm] |
[V] |
[µm] |
[N] |
|
NAC2221(CMBP01) |
21 |
7.8 |
0.7 |
200 |
±210 |
1.34 |
NAC2222 (CMBP02) |
21 |
7.8 |
1.3 |
200 |
±140 |
5.0 |
NAC2223 (CMBP03) |
21 |
7.8 |
1.8 |
200 |
±100 |
9.5 |
NAC2224 (CMBP04) |
32 |
7.8 |
0.7 |
200 |
±560 |
0.82 |
NAC2225 (CMBP05) |
32 |
7.8 |
1.3 |
200 |
±375 |
3.00 |
NAC2226 (CMBP06) |
32 |
7.8 |
1.8 |
200 |
±260 |
5.80 |
NAC2227 (CMBP07) |
50 |
7.8 |
0.7 |
200 |
±1490 |
0.51 |
NAC2228 (CMBP08) |
50 |
7.8 |
1.3 |
200 |
±1000 |
1.90 |
NAC2229 (CMBP09) |
50 |
7.8 |
1.8 |
200 |
±700 |
3.60 |
CLICK ON PRODUCT NAME FOR MORE DETAILS
(*) Operating voltage is 200V (+/- 100V)
NAC222X Data Sheet
Typical Outline
The figure below shows the typical outline of the NAC222X
| Symbol | Parameter | Unit |
|---|---|---|
L |
Length excluding external electrodes |
mm |
LC |
Clamping Length = 3.5 |
mm |
W |
Width |
mm |
H |
Height |
mm |
- More about bending actuators
- Mount and connect NAC222X (CMBP)
- Wires selection guide
- Piezo materials
- Blocking force and Free Stroke
- Capacitance
- Curie Temperature
All technical information of this document is not contractual and can be changed without prior notice.
