High Temperature Multilayer Plate Stacks

(NAC6000-Hxx)

Noliac Piezo Actuators

• More about linear actuators
• Mount and connect NAC6000-Hxx Plate Actuator Stacks



Specifications on Multilayer Plate Actuator Stacks:

Product Name	Length	Width	Height	Max. Voltage	Free Stroke	Blocking Force
	[mm]	[mm]	[mm]	[V]	[µm]	[N]
NAC6024-Hxx	3	3	4-30	200	1.81 - 25.3	290
NAC6025-Hxx	5	5	4-50	200	1.9 - 45.6	800

CLICK ON PRODUCT NAME FOR MORE DETAILS

Typical Outline

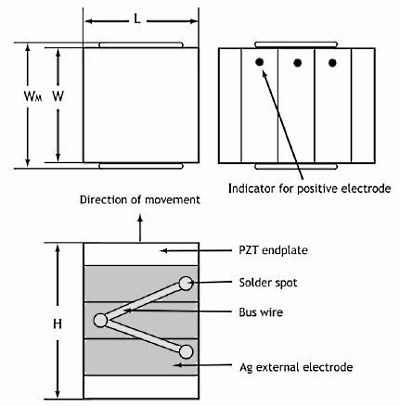

The figure below shows the typical outline of the NAC Plate Actuator Stacks

Symbol	Parameter	Unit
L	Length	mm
LM	L + 0.5 (this includes NAC6000-Hxx's tolerance and misalignment)	mm
W	Width	mm
WM	Maximum width = W + 1.5 (this includes bus wire and solder material, not wire)	mm
H	Height	mm

• Actuators Add-on options (wires, connectors, vacuum-rated
• Piezo materials
• Blocking force and Free Stroke
• Capacitance
• Curie Temperature

All technical information of this document is not contractual and can be changed without prior notice.
