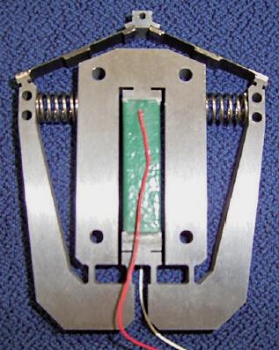

Mechano Transformer's MechaTrans products incorporate multilayer piezoelectric actuators for the control of motion using magnification-demagnification
Compared to conventional piezoelectric actuators, they are able to achieve increased displacement while maintaining precise positioning and speed of movement.
Standard Parts List
| Product Mod |
Piezo
L
| Piezo W | Piezo H | Disp 100V | Force | Rigidity | Cap |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | [µm] | N | kN/m | nF | |
| MTA01S50F1 | 1.1 |
0.8 | 10 | 50 | 1.4 |
28 |
26 |
| MTA01S100F0.6 |
1.1 | 0.8 | 10 | 100 | 0.6 |
6 | 26 |
| MTA01S200F0.3 | 1.1 | 0.8 | 10 | 200 | 0.3 |
1.6 |
26 |
| MTA02S50F5 | 2 | 3 | 5 | 50 | 5 | 74 | 90 |
| MTA02S100F2 | 2 | 3 | 5 | 100 | 2 |
17 | 90 |
| MTA02S200F1 | 2 | 3 | 5 | 200 | 1 |
4 | 90 |
| MTA02S100F4 | 2 | 3 | 10 | 100 |
4 |
43 | 180 |
| MTA02S200F2 | 2 | 3 | 10 | 200 | 2 |
11 |
180 |
| MTA02S400F1 | 2 | 3 | 10 | 400 | 1 |
3 |
180 |
| MTA02S200F4 | 2 | 3 | 20 | 200 | 4 | 17 |
350 |
| MTA02S400F2 | 2 | 3 | 20 | 400 | 2 | 5 | 350 |
| MTA02S600F1 | 2 | 3 | 20 | 600 |
1 | 1.5 |
350 |
| MTA02S400F7 | 2 |
3 | 40 | 400 | 7 |
17 |
820 |
| MTA02S600F5 |
2 | 3 | 40 | 600 | 5 |
8 | 820 |
| MTA02S800F3 | 2 | 3 | 40 | 800 | 3 |
4 |
820 |
| MTA05S100F13 | 5 | 5 | 10 | 100 | 13 | 132 | 750 |
| MTA05S200F10 | 5 | 5 | 10 | 200 | 8 |
37 | 750 |
| MTA05S400F3 | 5 | 5 | 10 | 400 | 3 |
7 | 750 |
| MTA05S200F12 | 5 | 5 | 20 | 200 |
12 |
49 | 1400 |
| MTA05S400F9 | 5 | 5 | 20 | 400 | 8 |
21 |
1400 |
| MTA05S600F4 | 5 | 5 | 20 | 600 | 4 |
7 |
1400 |
| MTA05S400F26 | 5 | 5 | 40 | 400 | 27 | 57 |
3400 |
| MTA05S800F13 | 5 | 5 | 40 | 800 | 16 | 17 | 3400 |
| MTA05S1600F5 | 5 | 5 | 40 | 1600 |
5 | 3 |
3400 |
| MTA10S200F43 | 10 |
10 | 20 | 200 | 43 |
228 |
5400 |
| MTA10S400F29 |
10 | 10 | 20 | 400 | 28 |
71 | 5400 |
| MTA10S700F14 | 10 | 10 | 20 | 700 | 14 |
19 |
5400 |
| MTA10S400F74 | 10 | 10 | 40 | 400 | 64 | 148 | 13600 |
| MTA10S800F37 | 10 | 10 | 40 | 800 | 37 |
43 | 13600 |
| MTA10S1600F18 | 10 | 10 | 40 | 1600 | 18 |
11 | 13600 |

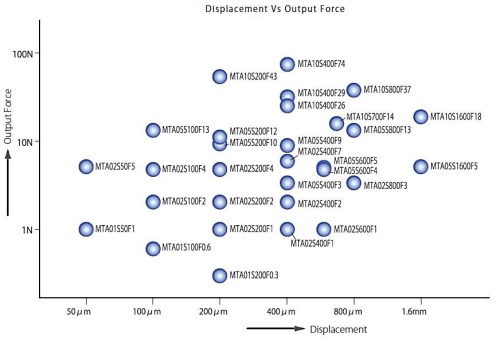

Selection Guide

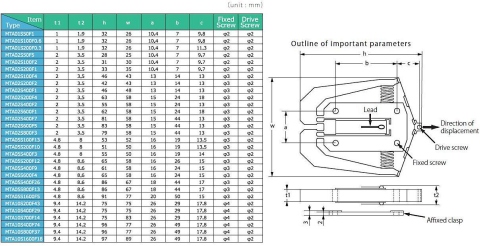

Outer Dimensions
Features
Mechano Transformer Corporation has developed displacement enlargement mechanisms using a unique lever principle. The enlarged displacement achieves one hundred times that of the piezoelectric device itself and has the following advantages:
- Capable of movement in less than 1 ms
- Can be mounted with spacing pitch of less than 2mm
- Durability of over 1 billion cycles
- Energy savings due to high effciency energy conversion
- Energy consumption in a holding position is very low.
- Capable of accurate repeatability and precise positioning

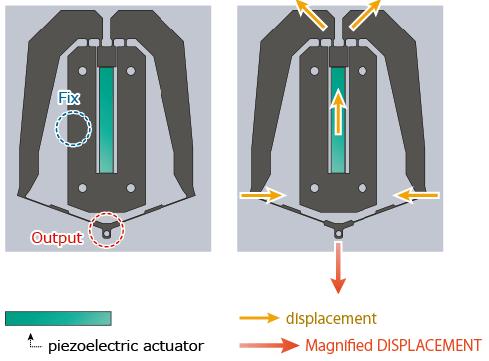

Illustration of operation
Application Examples

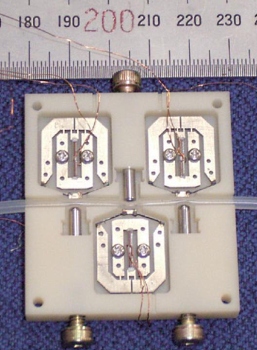

Positioning, Motors, Pumps, Valves, Vibration source, Vibration controls, Sensors, Mirror/Prism positioning, Manipulators, AFM, Printer, etc. Shown below is a Tube Pump that utilizes the MTA transformer.
