WS-Series Responds to any cleaning needs in a wide range of frequency variation.
Modular-type Ultrasonic Cleaners
|

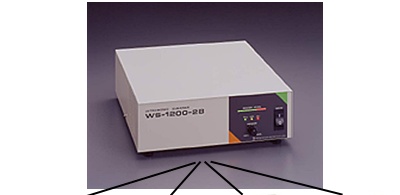

WS Generator
 |
|||
 |
 |
 |
 |
|
S-Type
Cleaning Tank
|
SH-Type
Cleaning Tank w/ Heater
|
N-Type
Immersible Transducer
|
F-Type
Vibration-plate transducer
|
WS Modular Cleaner Series
The WS Generator can be combined with different Transducer options depending the application needs.
Selection
The WD-series of cleaners are MODULAR TYPE cleaners. First, select the appropriate generator to meet your application needs based on power and frequency of operation. Then select the other necessary modules for your needs, i.e., tank, tank and heater, only vibration plate transducer or immersible transducer.
Features
-
Frequency self-tracking systems. Using our automatic frequency checking systems, it is possible to mantain a constant frequency despite changes in the cleaning load. The new generation of WS Series generators includes a proprietary automatic frequency tracking system (oscillator + PLL detection) circuit that feeds back to the controller and automatically adjusts for variations in product load.
-
Stabilized Power Output (Output Power Control). Adjusts for changes in output power that may be caused by changes in the load, such as liquid depth, cleaning materials, temperature, fluid density, pressure and other variables.
-
Wide power range. Output power is completely adjustable from 0-100% (only for 28kHz and 40kHz units).
-
No adjustment required. Manual power adjustment is not required for the transducers - it is all automatic
-
Equipment Safety Features. Safety switches are installed so that the unit will automatically shut off if there is a malfunction of the transducer, power surge, excess temperature, etc.
Applications
| Precision Parts | Oil and dirt removal from precision parts such as camera and bearing parts of clocks |
| Optics | Lenses, prisms, and removal of dust and fingerprints of the film |
| Mechanical | Molds, tools, and removal of cutting oil and abrasive dust |
| Plating | Removal of oil and dust of plated parts |
| Automotive | Remover the dust and oil of pistons, carburetor and electrical parts |
| Fiber | Removal of dust and glue adhered to fabric, machinery and part of the process |
| Semiconductor | Removal of oil and wax of IC, wafer, components, etc. |
| Electronic and electrical | Fingerprints and dust removal of cathode ray tubes, printed circuit boards, liquid crystal glass, magnetic heads, etc. |
Generators Specifications
|
Model code |
WS-600-28T |
WS-600-40T |
WS-600-75T |
WS-1200-28T |
WS-1200-40T |
|
|
Oscillation mode |
Single frequency oscillation (SINGLE) | |||||
|
Max. Power Output |
DUAL-FM | 600W (output adjustable) | 1200W (Output adjustable) | |||
| SINGLE | ||||||
| PULSE | ||||||
| Osc. Freq. | DUAL-FM | 28kHz | 40kHz | 75kHz | 28kHz | 40kHz |
|
SINGLE- PULSE |
||||||
| Output Control | Digital constant power control | |||||
| Frequency Control method | PLL frequency digital tracking | |||||
| Adjustable Output | 0-100% | |||||
| Power Supply | AC200, 220V, 230V, 240V± 10% (selection at purchase);1 50/60Hz | |||||
| Power Consumption | 1200VA | 2400VA | ||||
|
I/O Interf. |
Remote function | Mode selection: ON/OFF (Input switch) | ||||
| Output function | Alarm output of abnormalities | |||||
| Output display | LED Level indicator (corresponds to output) | |||||
| Environment |
Temperature: 0 ~ 40oC Humidity: 0 ~ 80% (without condensation) |
|||||
|
Size LxWxH (mm) |
300x345x130 H Dimensions: including rubber feet) |
360x400x130 H Dimensions: including rubber feet) |
||||
| Weight (kg) | 10 | 12 | ||||
| Power cord (m) | 3.5 | |||||
Transducer Options
| S-Type: Cleaning Tank | SH-Type: Cleaning Tank w/ Heater | N-Type: Immersible Transducer | F-Type: Vibrator-plate type Transducer |
|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
Option: S-Type Cleaning Tank
|
Model |
WS-600-28S |
WS-600-40S |
WS-1200-28S |
WS-1200-40S |
|
Max. Power Input |
600W | 1200W | ||
|
Oscillation Frequency |
28 kHz | 40 kHz | 28 kHz | 40 kHz |
| Transducer | Bolt clamped Langevin transducer | |||
|
Max. liquid Temp. |
100oC | |||
| Material | Tank: 304(SUS316L available by customized order) | |||
|
Tank size (mm) LxWxH |
Inner: 370x250x250 (23L) Outer: 420x300x380 |
Inner: 500x300x250 (35L) Outer: 550x350x380 |
||
|
Weight (kg) |
22 | 19 | 39 | 34 |
|
Output cable Length |
3.5m | |||
|
Available generator |
WD-600-28T WS-600-28T |
WS-600-40T |
WD-1200-28T WS-1200-28T |
WS-1200-40T |
| Optional Parts |
Cleaning basket: Model KG10 for WS-600 and KG-11 for WS-1200 |
|||
Option: SH-Type Cleaning Tank with Heater
|
Model |
WS-600-28SH |
WS-600-40SH |
WS-1200-28SH |
WS-1200-40SH |
| Heater | 2kW | 3kW | ||
|
Max. Power Input |
600W | 1200W | ||
|
Oscillation Frequency |
28 kHz | 40 kHz | 28 kHz | 40 kHz |
| Transducer | Bolt clamped Langevin transducer | |||
|
Max. liquid temperature |
100oC | |||
| Material | Tank: 304(SUS316L available by customized order) | |||
|
Tank size (mm) LxWxH |
Inner: 370x250x250 (23L) Outer: 420x300x380 |
Inner: 500x300x250 (37L) Outer: 550x350x380 |
||
|
Weight (kg) |
22 | 19 | 39 | 34 |
|
Output cable length |
3.5m | |||
|
Available generator |
WD-600-28T | WD-600-40T | WD-1200-28T | WD-1200-40T |
| Optional Parts |
Cleaning basket: Model KG10 for WS-600 and KG-11 for WS-1200 |
|||
Option: N-Type Immersible Transducer
|
Model |
WS-600-28N |
WS-600-40N |
WS-600-75N |
WS-1200-28N |
WS-1200-40N |
|
Max. Power Input |
600W | 1200W | |||
|
Oscillation Frequency |
28kHz | 40kHz | 75kHz | 28kHz | 40kHz |
|
Transducer |
Bolt clamped Langevin transducer | ||||
|
Max. Liquid Temperature |
80oC | ||||
|
Material |
Case: 304(SUS316L available by customized order) | ||||
|
Size (mm) LxWXH |
350x200 x100 |
350x200 x75 |
350x200 x100 |
420x300 x100 |
420x300 x75 |
|
Weight (kg) |
14 | 10.5 | 14 | 18 | 14 |
|
Output cable length |
2.5m (Braided portion 2m) + Output cable 3.5m | ||||
| Available generator |
WD-600-28T WS-600-28T |
WS-600-40T |
WS-600-75T |
WD-1200-28T WS-1200-28T |
WS-1200 40N |
Option: F-Type Vibration-Plate Type Transducer
|
Model |
WS-600-28F |
WS-600-40F |
WS-600-75F |
WS-1200-28F |
WS-1200-40F |
|
Max. Power Input |
600W | 1200W | |||
|
Oscillation Frequency |
28kHz | 40kHz | 75kHz | 28kHz | 40kHz |
|
Transducer |
Bolt clamped Langevin transducer | ||||
|
Max. Liquid Temperature |
100oC | ||||
|
Material |
Plate: 304(SUS316L available by customized order) Packing: EPDM t=3mm (Viton available as an option) |
||||
|
Size (mm) LxWXH |
390 x 240 (2.5t) | 460 x 340 (2.5t) | |||
|
Weight (kg) |
10 | 8 | 10 | 16 | 12.5 |
|
Output cable length |
1m + Output cable 3.5m | ||||
| Available generator |
WD-600-28T WS-600-28T |
WD-600-40T |
WS-600-75T |
WD-1200-28T WS-1200-28T |
WD-1200-40N |
Optional Parts for WT-Series
| KG10 |
WS-600-28 WS-600-40 WS-600-75 |
L=355 x W=235 x H=180 | SUS304 |
| KG11 |
WS-1200-28 WS-1200-40 |
L=485 x W=285 x H=180 | SUS304 |
How to order
If you need a specific quote, please request so by sending us an e-mail through "Request for Quote" by refering to the following part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.
WD-Series Price List
|
Generator Code |
Transducer Code |
Part Number |
Price (USD) |
| WS-600-28T | WS-600-28S |
WS-600-28T + WS-600-28S |
$ 7,025 |
| WS-600-28SH |
WS-600-28T + WS-600-28SH |
$ 8,750 |
|
| WS-600-28N |
WS-600-28T + WS-600-28N |
$ 6,650 |
|
| WS-600-28F |
WS-600-28T + WS-600-28F |
$ 6,280 |
|
| WS-600-40T | WS-600-40S |
WS-600-40T + WS-600-40S |
$ 6,875 |
| WS-600-40SH |
WS-600-40T + WS-600-40SH |
$ 7,765 | |
| WS-600-40N |
WS-600-40T + WS-600-40N |
$ 6,680 |
|
| WS-600-40F |
WS-600-40T + WS-600-40F |
$ 6,425 |
|
| WS-600-75T | WS-600-75S |
WS-600-75T + WS-600-75S |
$ 7,275 |
| WS-600-75SH |
WS-600-75T + WS-600-75SH |
$ 9,000 |
|
| WS-600-75N |
WS-600-75T + WS-600-75S |
$ 6,890 |
|
| WS-600-75F |
WS-600-75T + WS-600-75S |
$ 6,500 |
|
| WS-1200-28T | WS-1200-28S |
WS-1200-28T +WS-1200-28S |
$ 10,990 |
| WS-1200-28SH |
WS-1200-28T + WS-1200-28SH |
$ 13,105 | |
| WS-1200-28N |
WS-1200-28T + WS-1200-28N |
$ 10,380 |
|
| WS-1200-28F |
WS-1200-28T + WS-1200-28F |
$ 9,075 |
|
| WS-1200-40T | WS-1200-40S |
WD-1200-40T + WS-1200-40S |
$ 11,065 |
| WS-1200-40SH |
WD-1200-40T + WS-1200-40SH |
$ 13,350 | |
| WS-1200-40N | WD-1200-40T + WS-1200-40N | $ 10,445 |
|
| WS-1200-40F | WD-1200-40T + WS-1200-40F | $ 9,140 |
|
Options |
Part Number |
Price (USD) |
|
KG10 Cleaning Basket for WS-600 |
KG10 |
$ 225.00 |
|
KG11 Cleaning Basket for WS-600 |
KG11 |
$ 435.00 |
