Ceramic Multi-Axis Shear Stacks (NAC2400/2900)
Noliac Piezo Actuators
Micromechatronic is offering the Noliac Multi-Axis Shear actuator stacks. These actuator stacks are available in a wide range of configurations to provide a line of powerful standard solutions dedicated to applications such as nanopositioning, precision mechanics, active vibration cancellation, switches, semiconductor manufacturing and testing. Custom design and construction is also availabe.
Specifications on Shear Stack Actuators:
| Model Number | Motion Axes | Length (L) | Width (W) | Height (H) | Free Stroke from -Vmax to +Vmax |
|---|---|---|---|---|---|
| units | - | mm +/- 0.20 mm | mm +/- 0.20 mm | mm +/- 0.20 mm | um +/- 20% |
| NAC2402-H1.7 | X | 5 | 5 | 1.7 | 1.5 |
| NAC2402-H2.3 | X | 5 | 5 | 2.3 | 3 |
| NAC2402-H3.4 | X | 5 | 5 | 3.4 | 6 |
| NAC2403-H1.7 | X | 10 | 10 | 1.7 | 1.5 |
| NAC2403-H2.3 | X | 10 | 10 | 2.3 | 3 |
| NAC2403-H3.4 | X | 10 | 10 | 3.4 | 6 |
| NAC2902-H2.8 | X/Y | 5 | 5 | 2.8 | 1.5 |
| NAC2902-H4 | X/Y | 5 | 5 | 4 | 3 |
| NAC2902-H6.4 | X/Y | 5 | 5 | 6.4 | 6 |
| NAC2903-H2.8 | X/Y | 10 | 10 | 2.8 | 1.5 |
| NAC2903-H2.8 | X/Y | 10 | 10 | 4 | 3 |
| NAC2903-H2.8 | X/Y | 10 | 10 | 6.4 | 6 |
| NAC3402-H7.4 | X/Y/Z | 5 | 5 | 7.4 | 1.5 |
| NAC3402-H12.6 | X/Y/Z | 5 | 5 | 12.6 | 3 |
| NAC3403-H7.4 | X/Y/Z | 10 | 10 | 7.4 | 1.5 |
| NAC3403-H12.6 | X/Y/Z | 10 | 10 | 12.6 | 3 |
| NAC3403-H23.1 | X/Y/Z | 10 | 10 | 23.1 | 6 |
* Click on Part Number for PDF of Data Sheet
Typical Outline

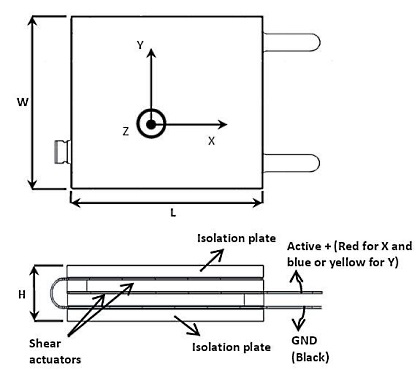

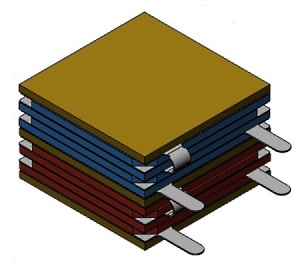

The figure below shows the typical outline of the Multi-Axis Shear Stack Actuators.
Options Available
- Cryogenic capable
- UHV capable
- Custom shaped isolation endplates
- Internal Diameter (central hole)
- Custom colours and types of wires
- Custom electrodes (materials, thicknesses)
- Custom piezoelectric material
All technical information of this document is not contractual and can be changed without prior notice.
