MechaTrans - Mechanical Transformers
MTD Series
Outline

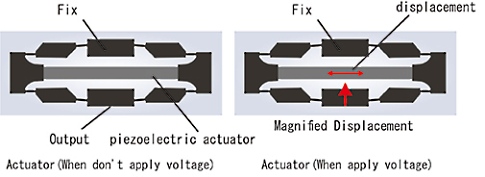

The MechaTrans®D-Series is a compact piezoelectric actuators that can generate large output strokes, which is 10 times and above larger than the stroke of a multilayer stacked piezoelectric actuator. The MechaTrans®D-Series consists of a stroke magnification / amplification structure and multilayer stacked piezoelectric actuators. With the stroke magnification structure, the stroke is magnified to overcome the limitation of the multilayer stacked piezoelectric actuator. The MechaTrans®D-Series is designed flat and compact in size, therefore the efficiency of the space utilization is high. The output stroke is converted to 90 degree in direction compare to the original output stroke of the multilayer stacked piezoelectric actuator. When a voltage is applied to the MechaTrans®D-Series, it shrinks as shown below.
Standard Actuators
| Product Mod |
PZ
L
| PZ W | PZ H |
Disp. 150V | Force | Stiff. | Res Freq | Cap |
|---|---|---|---|---|---|---|---|---|
| Units | mm | mm | mm | µm | N | N/um | Hz | uF |
| MTD03S50F3 | 15 | 3 | 5 | 50 | 3 | 0.06 | 2000 | 0.30 |
| MTD08S250F27 | 22 | 8 | 8 | 250 | 27 | 0.11 | 790 | 0.85 |
| MTD08S270F25 | 22 | 8 | 8 | 270 | 25 | 0.09 | 650 | 0.85 |
| MTD08S300F25 | 26 | 8 | 8 | 300 | 25 | 0.08 | 500 | 0.85 |
| MTD16S750F90 | 52 | 16 | 14 | 750 | 90 | 0.12 | 290 | 8.5 |
| MTD16S750F120 | 52 | 16 | 14 | 750 | 120 | 0.16 | 320 | 118.5 |
| MTD16S800F90 | 52 | 16 | 16 | 800 | 90 | 0.11 | 280 | 11.5 |
| MTD16S830F100 | 52 | 16 | 16 | 830 | 100 | 0.12 | 290 | 8.5 |
| MTD20S160F920 | 90 | 21.1 | 37 | 160 | 920 | 5.75 | 850 | 25 |
Vacuum Enviroment Compatible Type
| Product Mod |
PZ
L
| PZ W | PZ H |
Disp. 150V | Force | Stiff. | Res Freq | Cap |
|---|---|---|---|---|---|---|---|---|
| Units | mm | mm | mm | µm | N | N/um | Hz | uF |
| MTDD08S250F12 | 22 | 8 | 8 | 200 | 17 | 0.085 | 700 | 0.32 |
75V Type
| Product Mod |
PZ
L
| PZ W | PZ H |
Disp. 150V | Force | Stiff. | Res Freq | Cap |
|---|---|---|---|---|---|---|---|---|
| Units | mm | mm | mm | µm | N | N/um | Hz | uF |
| MTDD08S250F12 | 26 | 8 | 8 | 250 | 14 | 0.056 | 500 | 1.4 |
Features
Mechano Transformer Corporation has developed displacement enlargement mechanisms using a unique lever principle. The enlarged displacement achieves one hundred times that of the piezoelectric device itself and has the following advantages:
- Large output stroke
- Flat and compact
- Output stroke of the piezoelectric actuators is converted to 90 degrees in direction.
- The MechaTrans®D-Series shrinks when a voltage applied, as shown in the figure below.
- Output stroke direction is opposite to the MechaTrans®DD-Series
The operating principle of the MechaTrans®D-Series

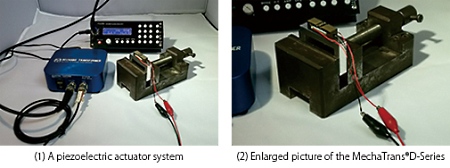

Mechanical tapped holes are fabricated at both sides of the MechaTrans®D-Series. Lead wires of red and black(white) are attached at the piezoelectric actuators. The first figure shows an example of the connection between the driver and the piezoelectric actuators. A resistance may be needed in between depend on the driving conditions. When a voltage is applied to the piezoelectric actuators, the MechaTrans®D-Series shrink as shown in the illustration below.
Application Examples
Positioning, Motors, Precision Pumps, Auto focus module for a camera, Valves, Positioning stage for lithography process, Vibration source, Vibration controls, Sensors, Mirror/Prism positioning, Manipulators, AFM, Printer, etc.
