Fuji Stack Actuators

150V Piezoelectric Stack Actuators

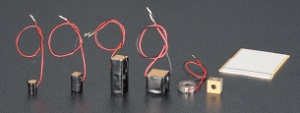

Multilayer stack lg

pdf-icon_sm Stack Actuator Data sheet



Specifications:

Prod. ModelCross SectLgthStrokeGenerated ForceRes. Freq.Cap. +/-20%
 mmmmumNkHzuF
SA0505-150-04M 5x5 5±0.1 4±0.5 950 230 0.17
SA0505-150-08M 5x5 10±0.1 8±1.0 950 126 0.34
SA0505-150-12M 5x5 15±0.2 12±1.5 950 85 0.51
SA0707-150-08M 7x7 10±0.1 8±1.0 1900 128 0.68
SA0707-150-16M 7x7 20±0.2 16±2.0 1900 64 1.36
SA0707-150-32M 7x7 40±0.3 32±3.5 1900 32 2.72
SA1010-150-16M 10x10 20±0.2 16±2.0 3800 64 2.72
SA1010-150-32M 10x10 40±0.3 32±3.5 3800 32 5.44

Features

  • Quick Response
  • Low Driving Voltage
  • Precision Control

Applications

  • Vibration
  • Precision Positioning
  • Pump Drive
  • PValve Drive etc.

Possible Drivers

AmplifierApplication
PDm200B General purpose, low cost
MX200 High Current, Low noise, low cost
PDu150 Ultra-low noise
PD200 High speed, low noise
PX200 High current, low noise



Connecting Wires

All of the connecting wires are 100mm AWG30 PTFE insulated wires.
