Damage Tolerant Actuator Stacks
(NAC502X-Hxx)
Noliac Piezo Actuators
Specifications on Multilayer Plate Actuator Stacks:
| Product Name | Length | Width | Height | Max. Voltage | Free Stroke | Blocking Force |
|---|---|---|---|---|---|---|
[mm] |
[mm] |
[mm] |
[V] |
[µm] |
[N] |
|
NAC5021-Hxx |
7 |
7 |
4-70 |
200 |
3.3 - 112.2 |
2060 |
NAC5022-Hxx |
10 |
10 |
4-100 |
200 |
3.3 - 161.7 |
4200 |
NAC5023-Hxx |
15 |
15 |
4-150 |
200 |
3.3 - 244.2 |
9450 |
CLICK ON PRODUCT NAME FOR MORE DETAILS
Typical Outline

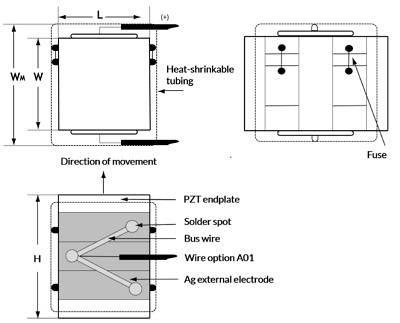

The figure below shows the typical outline of the NAC Plate Actuator Stacks
| Symbol | Parameter | Unit |
|---|---|---|
L |
Length |
mm |
LM |
L + 0.5 (this includes NAC6000-Hxx's tolerance and misalignment) |
mm |
W |
Width |
mm |
WM |
Maximum width = W + 1.5 (this includes bus wire and solder material, not wire) |
mm |
H |
Height |
mm |
- Actuators Add-on options (wires, connectors, vacuum-rated
- Piezo materials
- Blocking force and Free Stroke
- Capacitance
- Curie Temperature
All technical information of this document is not contractual and can be changed without prior notice.
