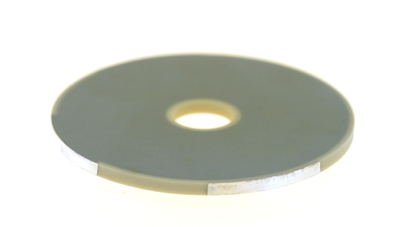

Ceramic Multilayer Ring Bender (NAC232X)
CTS Piezo Actuators
Specifications on standard CTS Ring Benders:
| Product Name | Outer Diameter | Inner Diameter | Height | Max. Voltage (*) | Free Stroke | Blocking Force |
|---|---|---|---|---|---|---|
| Replaces () | [mm] +/-0.60 | [mm] +/-0.15 | [mm] +/-0.10 | [Vmax] | [µm] +/- 15% | [N] +/- 20% |
| NAC2322 (CMBR02) |
20 | 4 | 1.25 | 200 | ±28 | 16 |
| NAC2323 (CMBR03) |
20 | 4 | 1.8 | 200 | ±20 | 22 |
| NAC2324 (CMBR04) |
30 | 6 | 0.7 | 200 | ±108 | 11 |
| NAC2325 (CMBR05) |
30 | 6 | 1.25 | 200 | ±70 | 29 |
| NAC2327 (CMBR07) |
40 | 8 | 0.7 | 200 | ±185 | 13 |
| NAC2328 (CMBR08) |
40 | 8 | 1.25 | 200 | ±115 | 39 |
CLICK ON PRODUCT NAME FOR MORE DETAILS
(*) Operating voltage is 200V (+/- 100V)
Tyical Outline
The figure below shows the typical outline of the CMBRs.
| Symbol | Parameter | Unit |
|---|---|---|
| OD | Outer diameter excluding external connections | mm |
| ID | Inner diameter | mm |
| H | Height | mm |
All technical information of this document is not contractual and can be changed without prior notice.
