CEDRAT LSPA30uXS Developer's Kit
CEDRAT Piezoelectric Technologies
Linear Stepping Piezo Actuators (LSPA) are long stroke linear piezoelectric motors for high precision positioning. Classified as inertial linear piezo motors, they benefit from the Cedrat APA® - Ampllified Piezoelectric Actuators - heritage, specially from their large deformation and high reliability.
Download LSPA30uXS Data Sheet|
CEDRAT Linear Stepping Piezoelectric Actuators (LSPA) - Purchasing Options |
||
|---|---|---|
 |
 |
|
 |
||
Performance of the LSPA30uXS Developer Kit
| References | Unit | LSPA30uXS Dev Kit |
|---|---|---|
| Notes | - | |
| Sensor | MAG | |
| Base |
APA30uXS | |
| Max. No-load displacement |
mm |
3.4 |
| Stiffness | N/µm | 0.11 |
| Sensor Resolution |
µm | 2.00 |
| Max. Speed |
mm/s | 30 |
| Typical Holding Force at rest |
N |
0.8 |
| Typical Actuation Force |
N |
0.2 |
| Short high resolution stroke |
µm | 42 |
| Capacitance | µF | 0.052 |
| Height along active axis |
mm |
8.25 |
| Base size * | mm |
25 x 34 |
| Mass | gr |
8.1 |
| DC input voltage |
V | 12 |
| Max input current input voltage |
A | 0.4 |
| Holding consumption | A | 0 |

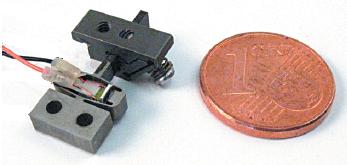

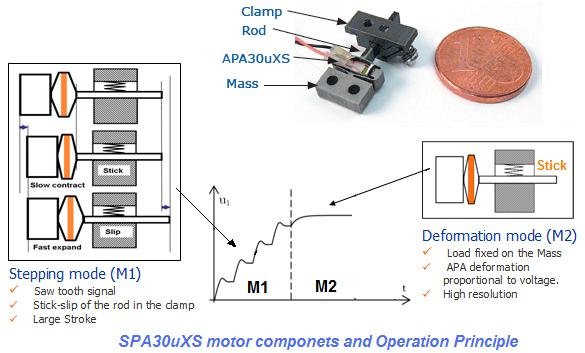

SPA30uXS Motor - Operation

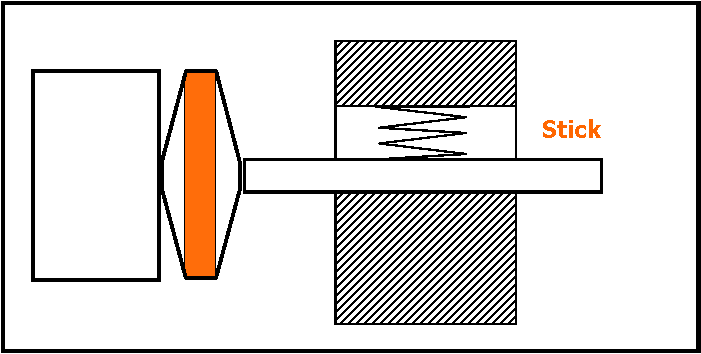

SPA operates by accumulation of small steps (M1), produced by a sawtooth-like signal. Between each step, the motor is locked in the new position without any consumption. As a complementary mode, fine adjustment (M2) of the APA® allows it to reach nanometer resolution.
Description of the LSPA30uXS Developer Kit
The LSPA30uXS Developer kit offers the possibility to discover the potential of the SPA30uXS, smallest existing LSPA, in stepping mode (M1). With an external dedicated miniature driver (SPC45), and coupled to a high resolution magnetic sensor, the Developer kit is a fully closed-loop solution for high resolution millimetric motion.

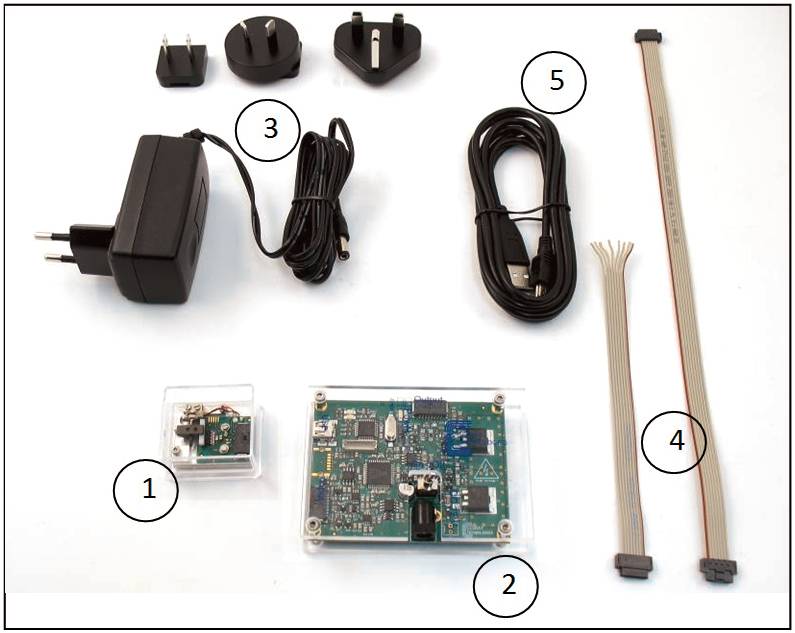

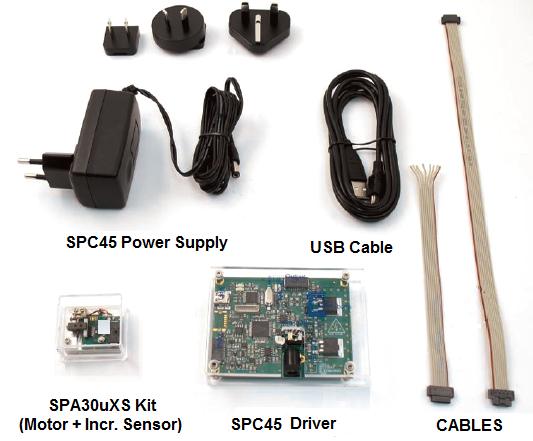

The LSPA30uXS Developer kit is made of different sub-systems:
- 1- SPA30uXS kit (LSPA30uXS motor coupled with an incremental sensor on a holding platform)
- 2- SPC45 driver
- 3- SPC45 Power Supply
- 4- Cables
- 5- USB cable for GUI control

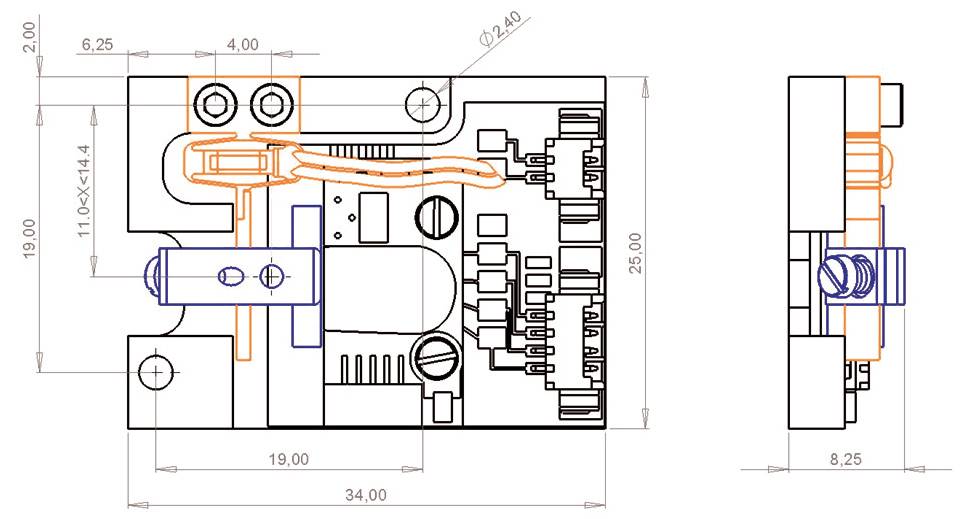

Mechanical configurations and interfaces
The Developer kit is a plug and play solution. It allows for quickly learning how to use the LSPA motor.
The LSPA30uXS motor can be extracted from the holding platform and integrated directly onto user’s test bench.
The LSPA30uXS motor can be extracted from the holding platform and integrated directly onto user’s test bench.

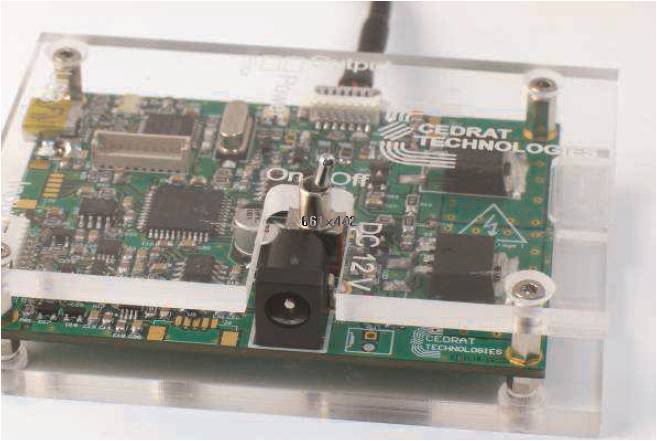

SPC45 - Dedicated electronics's characteristics
The dedicated driver, the “Stepping Piezo Controller” (SPC45) has been built to offer large possibilities to designers, from fast motion setup to completely controlled movement. USB interface, as well as serial port are available to meet every designer’s requirements.
Cedrat Links
- Download Piezo Catalogue 2022
- Mechanisms 2024
- Demo kit
- Evaluation Pack EP120S
- LSPA30uXS Dev Kit
- Piezoelectric Actuators
- CAu10-miniature linear amplifier
- LA75 / CA45 amplifiers
- Piezoelectric optical mechanisms
- SP75-switching amplifier
- UC45-controller
- UC75/UC75-MC real time controller
- XY piezoelectric stage

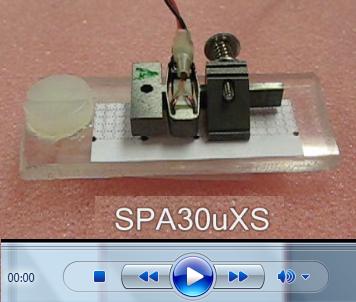

- SPA Movie (WMV)
