Sunnytec Langevin Ultrasonic Transducer for Cleaning

Ultrasonic Transducers

Main Features

• High Mechanical Quality factor and excellent electro-acoustic conversion efficiency, providing high output amplitude.
• Piezoelectric element offer a high speed of vibration. Through bolt-on presstress, mechanical and amplitude have been improved.
• Having steady output amplitude even under markedly changed loads.
• Extended temperature use, ensuring good amplitude linearity. Low resonant impedance ensuring high conversion efficiency.
• Bolt-on pre-stressed design provides fast and easy installation with high reliability.

Transducers for Ultrasonic Cleaning Selection Chart

STC-4SS-3528-B (28kHz; P=50W) (D=45mm; H=79.2mm)	STC-4SS-3528-C (28kHz; P=50W) (D=45mm; H=71.3mm)	STC-4SH-3540 (40kHz; P=50W) (D=45mm; H=50mm)
STC-4SH-3828 (28kHz; P=60W) (D=59mm; H=67mm)	STC-4SS-3868 (68kHz; P=60W) (D=50mm; H=74mm)	STC-4SH-3840 (40kHz; P=60W) (D=48mm; H=50mm)
STC-4SS-38120 (120kHz; P=60W) (D=40mm; H=54mm)	STC-4SH-5028 (28kHz; P=100W) (D=67mm; H=69mm)	STC-8SH-3828 (28kHz; P=60W) (D=59mm; H=68mm)

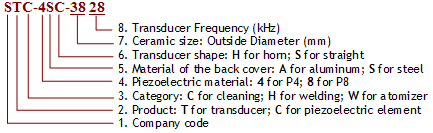

Product Coding
