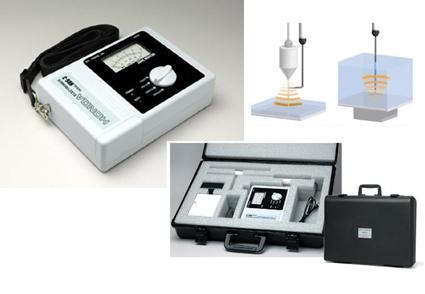

HUS-3 Portable Ultrasonic Sound Pressure Meter
Ultrasonic Sound Pressure Meter
HUS-3 DATA SHEET
Specifications for the HUS-3 Generator
|
Frequency Response
|
10kHz ~ 5MHz
|
|
Power Input
|
Lithium Battery: Model JP01 (HBT-001)
DC 14.8V; 1.5W
|
|
Charger
|
Dedicated AC charger: Model JA01 (BT-024)
85VAC to 240VAC
|
|
Signal Input
|
Four types of sensing probes available
|
|
Measuring Range
|
10mV, 50mV, 100mV, 500mV
|
|
Dimmensions
|
W=180mm x D=130mm x H=50mm excluding protrusions
|
|
Weight
|
0.64kg including the Lithium-ion battery
|
|
Meter Display
|
Vots rms (mV) (relative value to sound pressure)
|
|
Temperature
|
5 ~ 40° C
|
Sensing Probes Options for HUS-3 Generator
|
Model
|
HUS-5 SPS
|
HUS-5 SPL
|
HUS-5 SUS
|
HUS-5 SUL
|
|
Material
|
Quartz Glass
 |
SUS316L
 |
||
|
Overall Length
|
Straight type: 340mm
|
L-shaped
250mm (L part 80mm)
|
Straight type: 340mm
|
L-shaped
250mm (L part 80mm)
|
|
Cable Length
|
1.5m
|
|||
|
Weight
|
0.08kg
|
0.14kg
|
||
|
Temperature wetted part
|
~ 0 to 70°C
|
|||
|
Non compatible liquids
|
Heated strong alkaline,
Hot phosphoric acid, hydrofluoric acid
|
Acid
|
||
Features
- Portable pressure sensor equipped with a built in rechargeable battery. Able to be used for up to 10 h.
- Displays a relative value to the measured ultrasonic power which can be used as a reference of the cleaning effect or as a means of profiling the ultrasonic or megasonic distributions in an ultrasonic cleaning apparaus.
- It is compatible with most cleaning solutions.
Applications
Often, it is necessary to measure the output of ultrasonic and megasonic cleaners for quality control. The HUS-3 provides the user with this capability. Some of the typical HUS-3 include:
- Check cleaning efficiency for cleaners
- Adjust or tune cleaners in both laboratory and production line environments
- Measure sound pressures in the range of 10kHz to 5MHz
- It can be used for all types of ultrasonic cleaners: immersed type, water flow type, and tank type.
How to order
If you need a specific quote, please request so by sending us an e-mail through "Request for Quote" by refering to the following part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.
HUS-3 Standard Configuration
- HUS-3 main unit
- Probe sensor (to choose from type SPS or SPL or SUS or SUL)
- Carrying case
- Strap
- AC adaptor for battery charging
- Lithium-ion polymer battery
- Operating manual
HUS-3 Optional Parts
| Article | Part Number | Units per case | Picture |
|
Charger Stand
|
JS01 | 1 |  |
|
AC adapter
|
JA01 (BT-024) |
1 |  |
|
Lithium-ion polymer battery
|
JP01 (HBP-001) |
1 |  |
|
Point sensing cover (available for straight sensors only, SPS and SUS)
|
PS01 | 1 |  |
HUS-3 Purchasing Options
|
Article
|
Part Number
|
Price
|
|
HUS-3 Main configuration with
Quartz straight sensor
|
HUS-3 with HUS-5 SPS
|
$ 2,975.00
|
|
HUS-3 Main configuration with
Quartz L-shapped sensor
|
HUS-3 with HUS-5 SPL
|
$ 2,975.00
|
|
HUS-3 Main configuration with
Steel straight sensor
|
HUS-3 with HUS-5 SUS
|
$ 2,975.00
|
|
HUS-3 Main configuration with
Steel L-shapped sensor
|
HUS-3 with HUS-5 SUL
|
$ 2,975.00
|
| HUS-5 SPS Quartz straight sensor |
HUS-5 SPS
|
$ 1,575.00
|
| HUS-5 SPL Quartz L-shaped sensor |
HUS-5 SPL
|
$ 1,575.00
|
| HUS-5 SUS Steel straight sensor |
HUS-5 SUS
|
$ 1,575.00
|
| HUS-5 SUL Steel L-shaped sensor |
HUS-5 SUL
|
$ 1,575.00
|
|
Charger Stand
|
JS01
|
$ 65.00
|
|
AC adapter
|
JA01
(BT-024)
|
$ 50.00
|
|
Lithium-ion polymer battery
|
JP01
(HBT-001)
|
$ 175.00
|
|
Point sensing cover
(available for straight sensors only)
|
PS01 |
$ 355.00
|
