TULA70-220 - Tiny Ultrasonic Linear Actuator
Linear Motor
Specifications
| Characteristic | Units | Value | Value |
|---|---|---|---|
| Reference Mobile | mm | M813 (L) | M510 (M) |
| Speed | mm/s | >15 | >15 |
| Thrust Force - Max | gf | >50 | >30 |
| Holding Force | gf | 120~160 | 120~160 |
| Stroke | mm | <15 | <18 |
| Shaft Length | mm | <30.0 | <30.0 |
| Shaft Diameter | mm | Φ1.3 | Φ1.0 |
| Driving Voltage | V | 20~35 | 20~35 |
| Driving Frequency | kHz | 40~55 | 40~55 |
| Power Consumption@20V | mW | < 500 | < 500 |
| Operating Temperature | C | -10~60 | -10~60 |
| Storage Temperature | C | -30~80 | -30~80 |
- 1. Custom shaft length available
- 2. 1.3 mm shaft diameter available - Code L.
- 3. Isolated Shaft available - order code DR

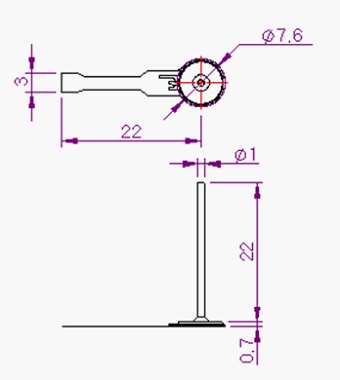

Basic Dimensions
TULA 70 Specifications
Features
The TULA exploits the vibration mode of piezoelectric ceramic, the inertial principle, and the contact friction between the shaft and the mobile to produce stepped linear motion. Some of the key features include:
- Very small size with a lightweight and simple structure
- Variable stroke
- Quick response
- Intrinsic holding force
- Excellent controllability
- Fine positioning/High resolution
- Quiet operation
- No EMI
Applications of TULA Motors
The TULA motors can be used in a variety of application. such as:
- Very small size with a lightweight and simple structure
- Variable stroke
- Quick response
- Intrinsic holding force
- Excellent controllability
- Fine positioning/High resolution
- Quiet operation
- Braille module
- Pan/tilt module of surveillance camera
- Adjusting flow rate of valve and nozzle
- Auto-Focus, Zoom for smart-phone
How to Order
The TULA can be purchased with any of the options listed below.
The Minimum Order Quantity (MOQ) for any of the TULA motors is 5 units.
