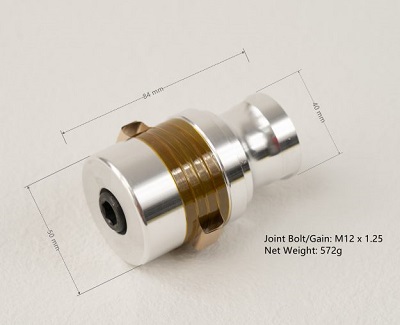

28kHz 2000Watt F50-SA-1 Langevin Transducer
Sino Sonic Ultrasonic Transducers
Specifications:
| Specification | Value |
|---|---|
| Frequency (Fs ± 0.5kHz) | 28 kHz |
| Max Diameter | 50 mm |
| Max Length | 86 mm |
| Flange Size - Dia | 52 |
| PZT Ring Diameter | 50 mm |
| Number of PZT Rings | 4 |
| Impedance | 5 Ohms |
| Capacitance (C±10%pF) | 13.3 nF (P8) |
| Input Power - Max | 2000 Watts |
| Amplitude | 13 um p-p |
| Front Mass Metal | AL |
| Back Mass Metal | AL |
| Joint Bolt Size | M12 x 1.25 |
| Net Weight | 578 gms |
