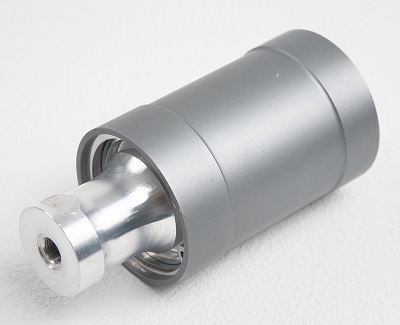

20kHz 2000W Langevin Transducer - Aluminum Housing
Sino Sonic Ultrasonic Transducers
Specifications:
| Specification | Value |
|---|---|
| Frequency (Fs ± 0.5kHz) | 20 kHz |
| Alum Housing - Dia x Lgth | 72 mm x 110 mm |
| Total Length | 153 mm |
| PZT Ring Diameter | 50 mm |
| Number of PZT Rings | 4 |
| Impedance | 3 Ohms |
| Capacitance (C±10%pF) | 11nF (optional 9 nF, 15 n?F) |
| Input Power - Max | 3600 Watts |
| Amplitude | 27 um p-p |
| Joint Bolt Size | M12 x 1.5(1/2" x 20) |
| Net Weight | 1125 gms |
How to order
If you need a specific quote, please request it by sending us an e-mail through "Request for Quote" by referring to the part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.
