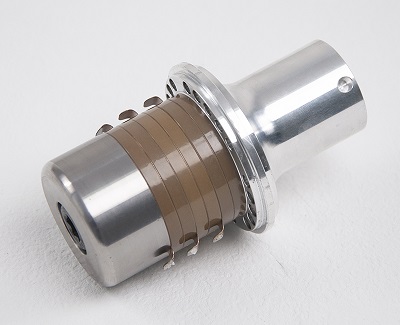

20kHz 4000Watt K50-SA-1 Langevin Transducer
Sino Sonic Ultrasonic Transducers
Specifications:
| Specification | Value |
|---|---|
| Frequency (Fs ± 0.5kHz) | 20 kHz |
| Max Diameter | 70 mm |
| Max Length | 129 mm |
| Flange Size - Diameter | 69 mm |
| PZT Ring Diameter | 50 mm |
| Number of PZT Rings | 6 |
| Impedance | 1 Ohms |
| Capacitance (C±10%pF) | 21nF (P8) |
| Input Power - Max | 4000 Watts |
| Amplitude | 24 um p-p |
| Front Mass Metal | Titanium Alloy |
| Back Mass Metal | Aluminum Alloy |
| Joint Bolt Size | 1/2", 20 |
| Net Weight | 889 gms |
