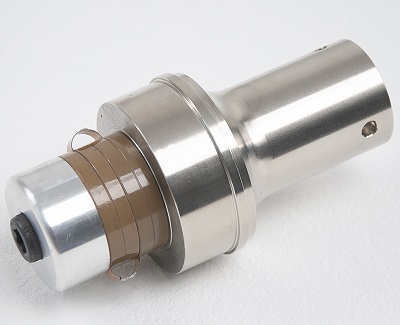

20kHz 1200Watt Branson 900 Replace Langevin Transducer
Sino Sonic Ultrasonic Transducers
Specifications:
| Specification | Value |
|---|---|
| Frequency (Fs ± 0.5kHz) | 20 kHz |
| Max Diameter | 63 mm |
| Max Length | 128 mm |
| Flange Size - Diameter | 60 mm |
| PZT Ring Diameter | 40 mm |
| Number of PZT Rings | 4 |
| Impedance | 4 Ohms |
| Capacitance (C±10%pF) | 8400pF (P8) |
| Input Power - Max | 1200 Watts |
| Amplitude | 12 um p-p |
| Front Mass Metal | Cemented Carbide |
| Back Mass Metal | Aluminum Alloy |
| Joint Bolt Size | 1/2", 20 |
| Net Weight | 677 gms |
How to order
If you need a specific quote, please request it by sending us an e-mail through "Request for Quote" by referring to the part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.
