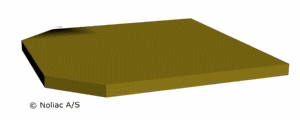

Plate Shear Actuators (CSAP)

Noliac Piezo Actuators



 CSAPCSAP

Specifications on standard Noliac multilayer piezo CMAP's:


Product TypeLengthWidthHeightMax. VoltageFree StrokeCapacitance
  [mm] [mm] [mm] [V] [µm] [pF]
CSAP01 2 2 0.5 +/- 320 1.5 133
CSAP02 5 5 0.5 +/- 320 1.5 830
CSAP03 10 10 0.5 +/- 320 1.5 3,320
CSAP04 15 15 0.5 +/- 320 1.5 7,470

CLICK ON UNIT NAME FOR MORE DETAILS

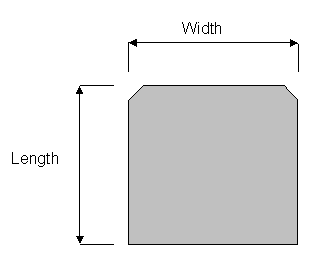

Typical Outline

The figure below shows the typical outline of the CSAP's

Shear1A

Shear1B

Shear2

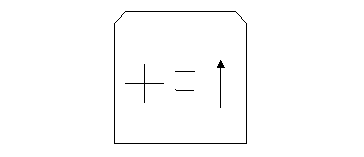

Sign convention:

A positive voltage on one electrode leads to a relative displacement of this electrode towards the chamfered edge. This displacement is recorded as positive.



All technical information of this document is not contractual and can be changed without prior notice.



More about Shear Actuators

Based on the piezoelectric shear mode, Noliac's shear actuators can be made more compact and have higher resonant frequencies than conventional piezo actuators. In addition, their low capacitance results in reduced power requirements for a given generated displacement in dynamic operation.


Shear actuators are used in numerous applications within e.g. nanopositioning, precision mechanics, active vibration cancellation, semiconductor manufacturing and testing.



Based upon market feedback, standard range and specifications may be changed without prior notice.
