WSC28 / WSC40 | Low frequency ultrasonic cleaner

Modular-type Ultrasonic Cleaner

WSC28_40_lg2

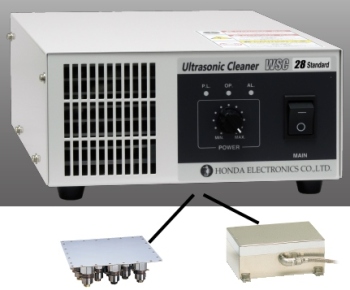

WSC Series Low Frequency Generator and Transducers

Features

  • The combination of a Honda developed transducer and the AM+FM frequency modulation at low frequency is ideal for cleaning heavy contaminants like grease, metal chips and large contaminant particles

  • AM (Amplitude Modulation) + FM (Frequency Modulation) provides even cleaning, eliminating deadspots.

  • The generator is 1/3 the size of traditional generators, significantly reducing the power consumption.

Description of FM +AM Oscillation mode

FM or Frequency Modulation means that the ultrasonic frequency continuously and gradually increases and decreases. AM or Amplitude Modulation means that the ultrasonic power continuously and gradually increases and decreases. AM_FM_med

Combining these two modulation at the same time, prevents standing waves and reduces the erosion problem during the cleaning process. It also improves the distribution of the ultrasonic waves to provide better results. It also more effective adapting to the changes in the number of parts, the cleaning media or its depth etc..

Generator Specifications

Model Code WSC28 WSC40
Model Standard High Power Standard High Powre
Oscillation FM + AM Oscillation
Max. Power Output 600W 1200W 600W 1200W
Oscillation Frequency 28kHz 40kHz
I/O Interface

Output power ON/OFF (contact point)

Irregular output warning (Relay output, on state when error)

Output Power Control 0 - 100% Continuous
Display Output power level indicator (LED)
Operating condition Tmp.: 5 to 40 deg C, Rel. Hmd.: 5 to 80 % (no condensation)
Power Supply 200~220V AC, 50/60Hz;
Power Consumption 300VA 600VA 300VA 600VA
Dimensions WxDxH (mm) 210x250x107 (exclude raised part, include foot)
Weight (kg) 3.6
Power cord (m) 3.5

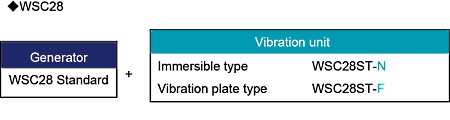

Setup Example

Setup_Example_lg

Transducer Options

N_TYPE: Immersible transducer F-TYPE: Vibrator-plate type transducer

Transducer Option: N-TYPE Immersible Transducer

Model number WSC28ST-N WSC28HP-N WSC40ST-N WSC40HP-N
Max. Input Power 600W 1200W 600W 1200W
Oscillation Frequency 28kHz 40kHz
Effective Area LxW (mm) 350x200 420x300 350x200 420x300
Dimensions LxWxH (mm) 350x200x100 420x300x100 350x200x75 420x300x75
Material Case: SUS304
Weight (kg) 8 14 7 12
Transducer Bolt clamped Langevin transducer
Liquid temperature 5-80oC
Output cable length (m)

Vibration unit-2.5m (Braided portion 2m) + Output cable-3.5m

Transducer Option: F-TYPE Vibration Plate Type

Model number WSC28ST-F WSC28HP-F WSC40ST-F WSC40HP-F
Max. Input Power 600W 1200W 600W 1200W
Oscillation Frequency 28kHz 40kHz
Effective Area LxW (mm) 350x200 420x300 350x200 420x300
Dimensions LxWxH (mm) 390x240x68 460x340x68 390x240x68 460x340x68
Plate thickness t = 2.5mm (less raised parts)
Material Case: SUS304
Weight (kg) 5 9 4 8
Transducer Bolt clamped Langevin transducer
Liquid temperature up to 100oC
Output cable length (m)

Vibration unit-3.5m + Output cable-3.5m

How to order

If you need a specific quote, please request so by sending us an e-mail through "Request for Quote" by refering to the following part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.

Price List

Generator Code Transducer Code Price (USD)
WSC28 Standard WSC28ST-N (600W) Contact us for a quote
WSC28 High Power WSC28HP-N (1200W) Contact us for a quote
WSC28 Standard WSC28ST-F (600W) Contact us for a quote
WSC28 High Power WSC28HP-F (1200W) Contact us for a quote
WSC40 Standard WSC40ST-N (600W) Contact us for a quote
WSC40 High Power WSC40HP-N (1200W) Contact us for a quote
WSC40 Standard WSC40ST-F (600W) Contact us for a quote
WSC40 High Power WSC40HP-F (1200W) Contact us for a quote
