Ring Bender 7 (CMBR07)

Noliac Ring Bender Actuator

Noliac CMBR's are typically used when a medium displacement at medium force is required. Noliac CMB-Rs' are cofired monolithic piezoelectric low voltage actuators that convert an electrical input to a very high-resolution linear movement at the center of a ring/disc shaped actuator.

Noliac CMBR's are manufactured with ceramic layer thickness down to 20µm as standard in order to facilitate very low operating voltage for full performance of the piezo material. Noliac CMBR's are mostly made to customer specifications, but a wide range of parts is available from stock as well.

pdf-icon_smCMBR07 Data Sheet

Product facts:


ValueTolerance
Length/outer diameter 40 mm ± 1.20 mm
Width/inner diameter 8 mm ± 0.25 mm
Height 0.7 mm ± 0.10 mm
Operating voltage (*)
200 V (*)

Free stroke +/- 185 µm ± 15%
Blocking force 13 N ± 20%
Capacitance 2 x 800 nF ± 15%
Stiffness 0.07 N/µm ± 20%
Maximum operating temperature 150 °C
Curie temperature 350 °C
Material NCE57 (S1)
Unload resonance frequency > 1.8 kHz
External electrodes Ag
Wires 30 AWG x 200 mm (+/-20 mm) Teflon

(*) Operating voltage is 200V (+/- 100V)

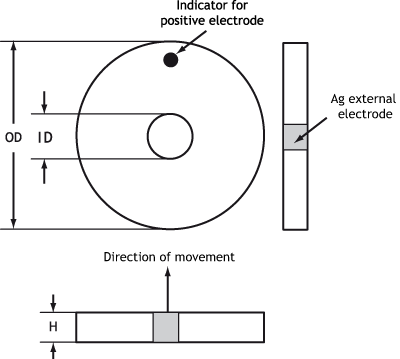

Typical outline:

The figure below shows typical outline of CMBR's

CMBR

SymbolParameterUnit
OD
Outer diameter excluding external connections mm
ID
Inner diameter
mm
H Height mm
All technical information of this document is not contractual and can be changed without prior notice.
