STC-4SS-3868 Langevin Transducer for Cleaner

Ultrasonic Transducers

STC 4SS 3868 med
Horn Mounting Option A Screw
OPTION A:
Horn Surface With Threaded hole for mounting

pdf-icon_sm Data Sheet STC-4SS-3868 - Option A (with Threaded hole)

General Application

Ultrasonic Cleaning

Specifications

Parameter SpecificationRemarks
Resonant Fequency fr 68 ± 1 kHz HP-4194 Impedance Analyzer at 1Vrms
Resonance Resistance Ro

Max 25 ohm

HP-4194 Impedance Analyzer at 1Vrms
Static Capacitance Cp 4800pF ± 10% LCR meter at 1kHz, 1Vrms
Mass g 475 g
Max Diameter D 50 mm
Length L 74.4mm
Max Input Power P 60 W
Max Input Voltage P 3000 Vp-p
Joint Bolt P M10 x 1.0mm

Tests environmental conditions: 23 ± 3 °C; 40 ~ 70% RH

Mounting options and dimensions

  • OPTION A: Threaded mounting hole in the horn surface for screw fixing
  • OPTION B: Flat surface for glue fixing

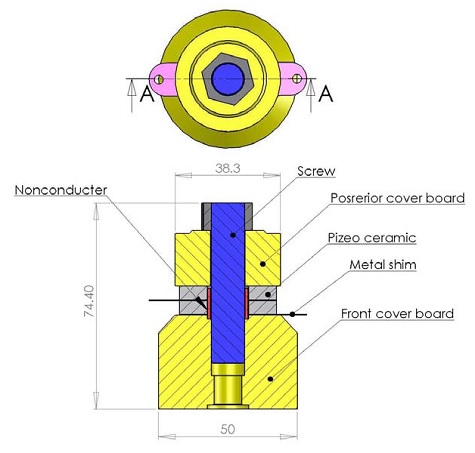

STC 4SS 3868 Dim

How to order

If you need a specific quote, please request so by sending us an e-mail through "Request for Quote" by refering to the following part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.

Purchasing Options

ArticlePart NumberPrice unit

Bolt Clamped Langevin Ultrasonic Transducer
Option A: Horn with Threaded Hole

STC-4SS-3868
Option A

1-9: $115.00

10-24: $70.00

25-99: $55.00

**Prices are for reference and subject to change without notice!
