MechaTrans - Mechanical Transformers

MTN Series

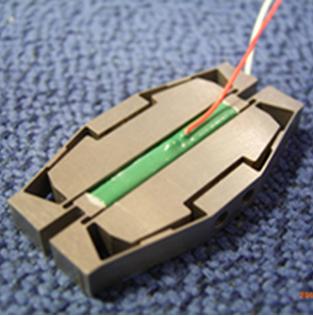

MTN3

Outline

Mechano Transformer's MechaTrans products incorporate multilayer piezoelectric actuators for the control of motion using magnification-demagnification

Compared to conventional piezoelectric actuators, they are able to achieve increased displacement while maintaining precise positioning and speed of movement.

Standard Parts List

Product Mod
PZ
L
PZ W PZ H

Disp. 100V

Disp. 150V

Force Stiff. Res Freq Cap

mm mm mm [µm] [µm]N kN/m Hz nF
MTN03S50F4 2 3 10 50 80 4 81.4 1046 80
MTN04S130F5
2 3 20 130 200 5 34.9 417 350
MTN10S1150F113 10 10 80 750 1150 113 110.7 106 21600

Features

Mechano Transformer Corporation has developed displacement enlargement mechanisms using a unique lever principle. The enlarged displacement achieves one hundred times that of the piezoelectric device itself and has the following advantages:

  • Capable of movement in less than 1 ms
  • Can be mounted with spacing pitch of less than 2mm
  • Durability of over 1 billion cycles
  • Energy savings due to high effciency energy conversion
  • Energy consumption in a holding position is very low.
  • Capable of accurate repeatability and precise positioning

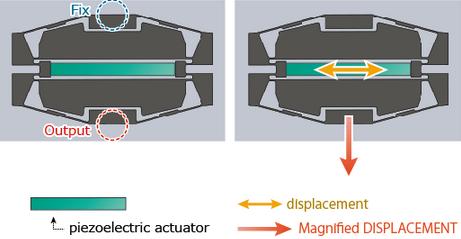

Illustration of operation

MTN_oper

Application Examples

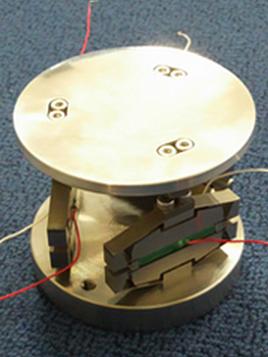

Positioning, Motors, Pumps, Valves, Vibration source, Vibration controls, Sensors, Mirror/Prism positioning, Manipulators, AFM, Printer, etc. Shown below is a 3 Axis Stage that utilizes the MTN transformer.

MTN_app
