USW-334ek Ultrasonic Engraver Cutter

Ultrasonic Cutters

USW334_ek_blds_med2

pdf-icon_sm USW-334ek DATA SHEET

pdf-icon_sm Blade Options for USW-334ek

pdf-icon_sm Blade and Component Compatibility List

pdf-icon_sm Precaution using USW cutters

Specifications:

Model USW-334ek
Generator Oscillation Mode Self-activating oscillation
Max. Power Output 20 W (Burst Oscillation)
Oscillation Frequency 40 kHz
Power Supply 100VAC +/-10% 50/60 Hz 30 VA
(we recommend the use of the VT-100J
converter for use in USA, i.e 110-120VAC)
Dimension W x D x H (mm) 134 x 127 x 71
Weight 0.42 kg
Cable length 1.4 m
Instrument Protection Thermal shutdown if temperature is above 70oC
Hand Piece Transducer type Bolt clamped Langevin transducer
Control Pushbutton switch
Dimensions (mm) D=28 x L=142
Weight 0.120 kg
Cable Length Output cable: 0.5 m (spiral cord)

Features

  • Based on the proven technology and performance of the USW334 Honda has developed the USW334ek specifically for engraving and etching applications. The USW334ek uses the same oscillation frequency of about 40,000 vibrations per second. The difference is the introduction of “Burst Oscillation”. This provides a ramp up of the vibration as opposed to the instant on with the USW334. This ramp up helps reduce the incidence of burning and melting of some materials and greatly reduces the possibility of blade slippage during engraving and shaping operations. The USW334ek handles the occasional cutting job as well.
  • NOTE: The USW334ek is designed for engraving and etching with the occasional cutting operation. If a cutter is the primary tool needed the USW334 is the better option.
  • The unit ships with a triangular blade, a semi-circular blade, a flat blade, and a standard cutting blade (for occasional cuts).

Applications

Ultrasonic engraving of plastics, wood, cardboard, leather etc. Used for plaster or plastic mold cleanup and detailing, deburring molded parts, model building, radio control vehicle fabrication, doll making, model sailboat construction, hobby and craft work.

Examples of engraving with USW2334ek

  • Results may vary with the type of material. Please consult us in advance.

334ek_engrave_sm

334ek_deburr_sm2

334ek_deburr2_sm

Wood Engraving Plastic Engraving  Plastic Deburring

How to order

Request a quote of this product by sending an e-mail through:

by refering to the product part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST).

Standard USW-334ek Set

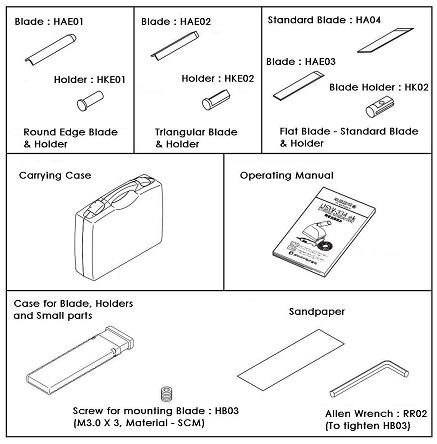

Includes: i) Main USW-334ek Body with Hand Piece; ii) Replacement Standard Blade and Holder; iii) Round Shaped Blade and Holder; iv) Triangular Shaped Blade and Holder; v) Flat Blade; vi) Screw for mounting blade; vii) Allen wrench (1 unit); viii) Sandpaper; ix) Operating manual; x) Carrying Case.

USW334ek_access_M2

USW-334ek Purchasing Options

Part Number Article Description Price
USW-334ek Main USW-334ek Body with hand piece
Standard Blade and Holder (1 unit each)
Round Edge Blade and Holder (1 unit each)
Triangular Edge Blade and Holder (1 unit each)
1 unit Flat Edge Blade (uses Std Blade Holder)
Screw for mounting blade (1 unit)
Allen wrench (1 unit)
Sandpaper
Operating manual
Carrying Case
$ 450.00

Optional Parts for USW-334ek

Part Number Article Description Units per case Price
HA04 Standard Blade 40 units $ 20.00
HAE01 Round Blade 1 units $ 45.00
HAE02 Triangular Blade 1 units $ 35.00
HAE03 Flat Blade 1 units $ 20.00
HK02 Standard and Flat Blade Clamp 1 unit $ 15.00
HKE01 Round Blade Clamp 1 unit $20.00
HKE02 Triangular Blade Clamp 1 units $ 20.00
HB03 Screw for mounting blade 1 units $ 5.00
RR02 Allen wrench 1 unit $ 5.00

VT-100J Converter for USA operation - Recommended for USA outlet

The USW-334 ultrasonic cutter is rated at 100VAC, which is the Japanese outlet voltage. The unit operates at 100VAC +/-10%. For operation in the USA , i.e. 110 to 120VAC, we recommend to using the VT-100J converter.

Part Number Article Description Units
per case
Price
VT-100J
vt100j_converter



USA to Japan Step-Down Converter

Input: 110V/120V
Output: 100V
Rated Load: 100VA max.
(including start-up current)
Heavy duty for continuous use
Fuse protected

1 unit

$ 35.00
