20kHz 2000W Transducer - Aluminum Housing - Cooling Fan

Sino Sonic Ultrasonic Transducers

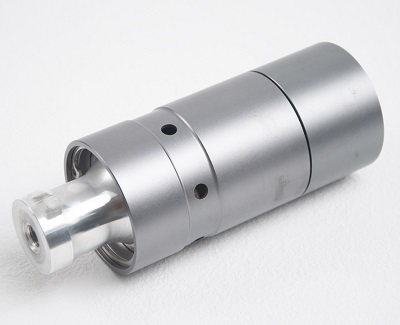

20kHz 2000Watt Ultrasonic Transducer with Aluminum Housing Fan lg



Specifications:



SpecificationValue
Frequency (Fs ± 0.5kHz) 20 kHz
Alum Housing - Dia x Lgth 72 mm x 153 mm
Total Length 192 mm
PZT Ring Diameter 50 mm
Number of PZT Rings 4
Impedance 3 Ohms
Capacitance (C±10%pF) 11nF (optional 9 nF, 15 n?F)
Input Power - Max 3600 Watts
Amplitude 27 um p-p
Joint Bolt Size M12 x 1.5(1/2" x 20)
Net Weight 1334 gms

How to order

If you need a specific quote, please request it by sending us an e-mail through "Request for Quote" by referring to the part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.
