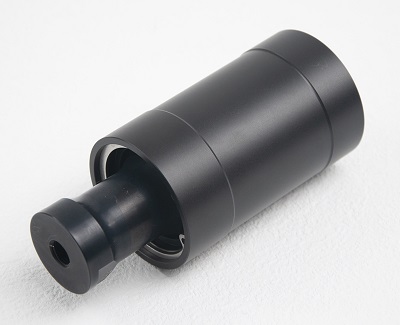

20kHz 1200W Transducer - AL Housing
Sino Sonic Ultrasonic Transducers
Specifications:
| Specification | Value |
|---|---|
| Frequency (Fs ± 0.5kHz) | 20 kHz |
| Alum Housing - Dia x Lgth | 62 mm x 105 mm |
| Total Length | 147 mm |
| PZT Ring Diameter | 38 mm |
| Number of PZT Rings | 4 |
| Impedance | 6 Ohms |
| Capacitance (C±10%pF) | 11 nF |
| Input Power - Max | 1200 Watts |
| Amplitude | 20 um p-p |
| Joint Bolt Size | M12 x 1.25 (1/2 x 20) |
| Net Weight | 753 gms |
How to order
If you need a specific quote, please request it by sending us an e-mail through "Request for Quote" by referring to the part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.
