20kHz 3200Watt TelSonic Replace Langevin Transducer

Sino Sonic Ultrasonic Transducers

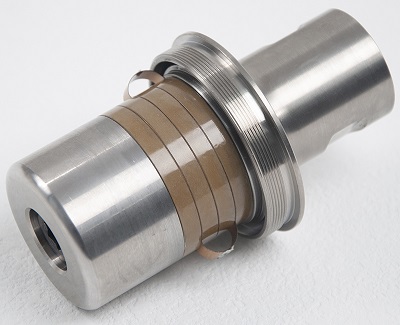

TelSonic 20kHz 3200Watt Converter Ultrasonic Transducer lg



Specifications:



SpecificationValue
Frequency (Fs ± 0.5kHz) 20 kHz
Max Diameter 70 mm
Max Length 117 mm
Flange Size - Diameter 64 mm
PZT Ring Diameter 50 mm
Number of PZT Rings 4
Impedance 1.5 Ohms
Capacitance (C±10%pF) 12000 pF (P8)
Input Power - Max 3200 Watts
Amplitude 24 um p-p
Front Mass Metal CTitanium Alloy
Back Mass Metal Aluminum Alloy
Joint Bolt Size 1/2", 20
Net Weight 1103 gms

How to order

If you need a specific quote, please request it by sending us an e-mail through "Request for Quote" by referring to the part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.
