20kHz 2000Watt Dukane Replace Langevin Transducer

Sino Sonic Ultrasonic Transducers

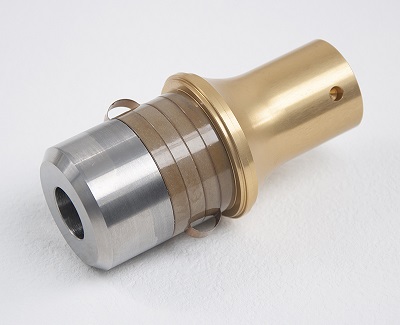

20kHz 2000Watt Dukane Converter Ultrasonic Transducer lg



Specifications:



SpecificationValue
Frequency (Fs ± 0.5kHz) 20 kHz
Max Diameter 60 mm
Max Length 120 mm
Flange Size - Diameter 60 mm
PZT Ring Diameter 50 mm
Number of PZT Rings 4
Impedance 2.5 Ohms
Capacitance (C±10%pF) 11500pF (P8)
Input Power - Max 2000 Watts
Amplitude 24 um p-p
Front Mass Metal Cemented Carbide
Back Mass Metal Aluminum Alloy
Joint Bolt Size 1/2", 20
Net Weight 1072 gms

How to order

If you need a specific quote, please request it by sending us an e-mail through "Request for Quote" by referring to the part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.
