20kHz 2000Watt Branson 803/8700 Replace Langevin Transducer

Sino Sonic Ultrasonic Transducers

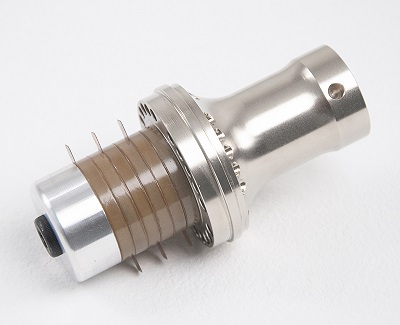

Branson 8700 Replacement 20kHz 2000Watt lg



Specifications:



SpecificationValue
Frequency (Fs ± 0.5kHz) 20 kHz
Max Diameter 63 mm
Max Length 125 mm
Flange Size - Diameter 60 mm
PZT Ring Diameter 40 mm
Number of PZT Rings 6
Impedance 4 Ohms
Capacitance (C±10%pF) 12550pF
Input Power - Max 2000 Watts
Amplitude 12 um p-p
Front Mass Metal Cemented Carbide
Back Mass Metal Aluminum Alloy
Joint Bolt Size 1/2", 20
Net Weight 641 gms

How to order

If you need a specific quote, please request it by sending us an e-mail through "Request for Quote" by referring to the part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.
