TULA25-065 - Tiny Ultrasonic Linear Actuator

Linear Motor

T25 med

Specifications

CharacteristicUnitsValue
Transducer Thickness mm 0.5
Transducer Diameter mm 2.5
Shaft Length mm 6.5
Shaft Diameter mm 0.8
Speed (No load) mm/s >3
Max Thrust Force gf >3
Holding Force gf 30~50
Stroke mm <1.5
Shaft Diameter mm Φ 0.8
Shaft Length mm <9
Reference Mobile   M308
Driving Voltage V 12~16
Driving Frequency kHz 170 - 250
Power Consumption (@12V) mW < 150
Operating Temperature C -10 ~ 60
Storage Temperature C -30 ~ 80

Basic Dimensions

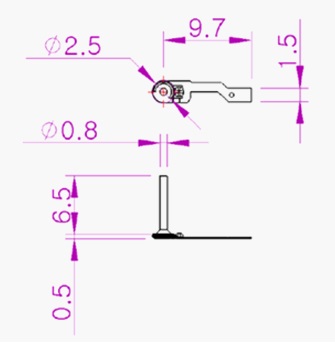

tula25 Dim med

pdf-icon_sm TULA 25 Specifications

Features

The TULA exploits the vibration mode of piezoelectric ceramic, the inertial principle, and the contact friction between the shaft and the mobile to produce stepped linear motion. Some of the key features include:

  • OIS(Optical Image Stabilizer)
  • IR filter for surveillance camera
  • Precision ultra-small stage
  • Mobile communication terminals including camera phone and PDA
  • Small precision instruments including semiconductor, small robot and MEMS
  • Industrial shutter
  • Small robot
  • No EMI

Applications of TULA Motors

The TULA motors can be used in a variety of application. such as:

  • Very small size with a lightweight and simple structure
  • Variable stroke
  • Quick response
  • Intrinsic holding force
  • Excellent controllability
  • Fine positioning/High resolution
  • Quiet operation
  • Braille module
  • Pan/tilt module of surveillance camera
  • Adjusting flow rate of valve and nozzle
  • Auto-Focus, Zoom for smart-phone

How to Order

The TULA can be purchased with any of the options listed below.

The Minimum Order Quantity (MOQ) for any of the TULA motors is 5 units.

TULA25 Options



PartDescriptionPrice (5-10)Price (11-20)Price (21-30)
TULA25-DD-065 S

Standard motor
Non-isolated shaft
6.5mm long
0.80 mm dia.

$84.00$51.00$41.00
TULA25-DD-065 S
with Mobile

Standard motor
Non-isolated shaft
6.5mm long
0.80 mm dia.
M 308 Mobile

$89.00$57.00$45.00
TULA25-DD-065 S
with Wires-Connector

Standard motor
Non-isolated shaft
6.5mm long
0.80 mm dia.
Wires and Connector

$90.00$59.00$48.00
TULA25-DD-065 S
with Wires-Connector + Mobile

Standard motor
Non-isolated shaft
6.5mm long
0.80 mm dia.
Wires and Connector
M380 Mobile

$95.00$65.00$53.00
TULA25 MobilesOptionsDetails
TULA35B M308 sm

M308 - 0.8mm Shaft

 M308 Details

click here


PartDescriptionPrice (1)Price (2-5)Price (5+)
PMC_1202_med

EV Kit
PMC-1804

$650.00$575.00Request a quote

pdf-icon_smTULA Piezoelectric Technologies Catalog (pdf)
