Nihon Ceratec Drivers

Provides two different positioners/controllers to meet your needs.  Click on the pictures below to learn more.

NCC Piezo Driver

Piezo Driver PD-1200 Series

The PD-1200 series is a modular-type amplifier which allows from 1 to 3 output channels. The maximum current per channel is limited to 200 mA.

Control Input Voltage Range: -0.5 V to 7.5 V
Output Voltage Range: -10 V to 150 V
Maximum Output Current: 200 mA rms
Maximum Number of Channels: 1 to 3 (optional)
Max. Frequency Bandwidth with C=0.1 uF: 6 kHz
Output Noise < 10mVpp

CA45-imag_small

Piezo Driver PD-1300

The PD-1300 is a high stablility and low noise amplifier designed to drive piezoelectric actuators. It allows positioning down to 10nm range.

Control Input Voltage Range: -0.5 V to 7.5 V
Output Voltage Range: -10 V to 150 V
Maximum Output Current: 2 A rms
Maximum Number of Channels: 1
Max. Frequency Bandwidth with C=0.1uF: 60kHz
Output Noise < 10mVpp

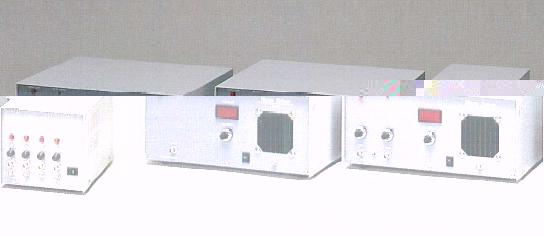

NCC_Multi_01

Multi Purpose Driver PD-2000

The PD-2000 is a high stablility and low noise amplifier designed to drive piezoelectric actuators. It allows positioning down to 10nm range.

Size: W=350mm; H=150mm; L=270mm
Control Input Voltage Range: 0 V to 7.5 V
Output Voltage Range: 0 V to 150 V
Maximum Output Current: (DC): 1 A; (AC): 2 A rms
Maximum Number of Channels: 1
Max. Frequency Bandwidth 10 kHz (10Vpp, C=0.7uF loaded)
Output Noise < 10mVpp
Option: Built-in Oscillator 10 to 500Hz

Multi/NCC_Multi_01

Low Current Piezo Driver PD-3000

The PD-3000 is a low current amplifier for l high stablility and low noise amplifier designed to drive piezoelectric actuators. It allows positioning down to 10nm range.

Size: W=167mm; H=157mm; L=295mm
Control Input Voltage Range: 0 V to 7.5 V
Output Voltage Range: 0 V to 150 V
Maximum Output Current: 5 mA rms
Maximum Number of Channels: 1 to 4
Max. Frequency Bandwidth 3 kHz (10Vpp, C=0.7uF loaded)
Output Noise < 10mVpp
Option: Built-in Oscillator 10 to 500Hz

nanopositioner

Nano Positioning System MT 4200

The PD-3000 is a low current amplifier for l high stablility and low noise amplifier designed to drive piezoelectric actuators. It allows positioning down to 10nm range.

Size: W=120mm; H=100mm; L=270mm
Control Input Voltage Range (analog): 0 V to 10 V
Positioning control input (digital): RS-232C
Maximum Number of Channels: 1 to 3 (X, Y, Z)
Control Linearity: Less than +/-0.1%
Control Resolution < 3mVpp
